Shenzhen Jinyuan Photoelectronic Technology Co.. LiD

Alpha Series 250*250mm

  • Power box lock
  • Easy open
  • Power Supply
  • Rong 200W
  • Rear cover
  • Quick heat dissipation

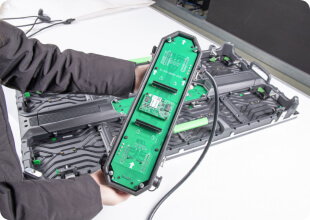

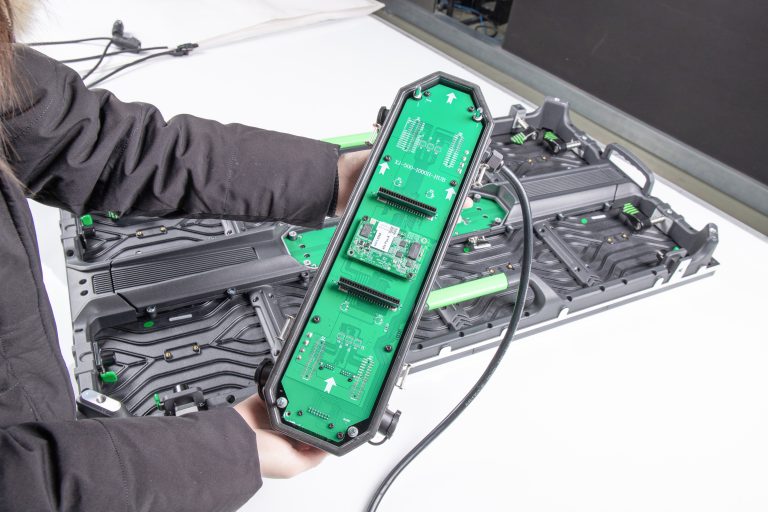

  • Receiving card
  • Novastar

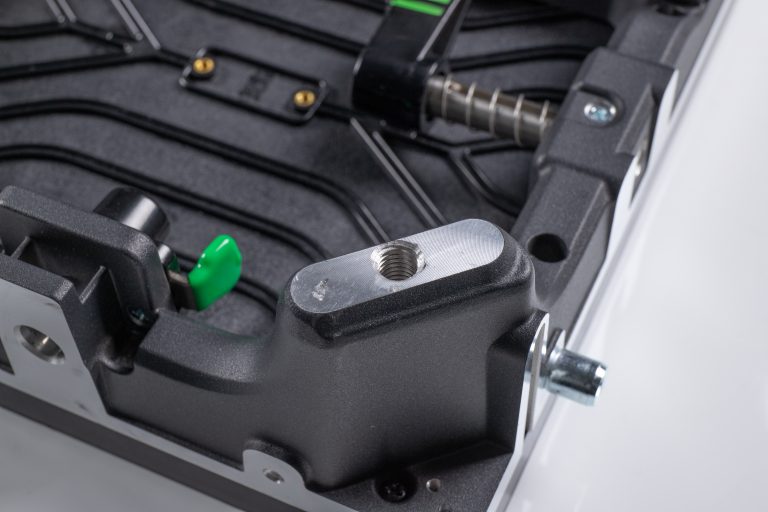

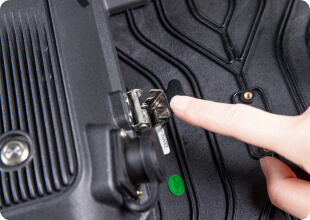

  • Fast lock
  • Stainless Steel

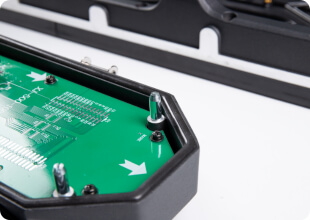

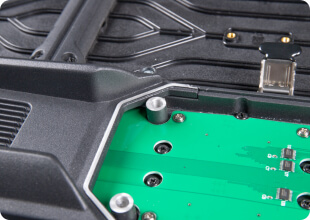

  • Positioning column
  • Easy installation

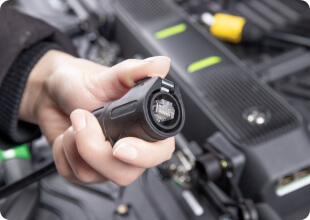

  • Aviation connector
  • Waterproof
  • LED Module
  • 250*250mm

Product Details

Technical Parameter

TypeDP-Series 2.604DP-Series 2.976DP-Series 3.91
pixel type2.604 mm2.976 mm3.91 mm
LED Type3in1 SMD1515 / 14153in1SMD2121 / 14153in1SMD2121 / 1921
Brightness800 nits / 4500 nits800 nits / 4500 nits800 nits / 4500 nits
Pixels per panel192×192 dots168×168 dots128×128 dots
Pixels density14745611289665356
Panel weight7kg / 12kg7kg / 12kg7.5kg / 12.5kg
Module sizeW 250mmxH 250mmW 250mmxH 250mmW 250mmxH 250mm
Cabinet SizeW500mmxH500mmxD85mmW500mmxH500mmxD85mmW500mmx H500mmx D85mm
Contrast ratio5000:15000:15000:1

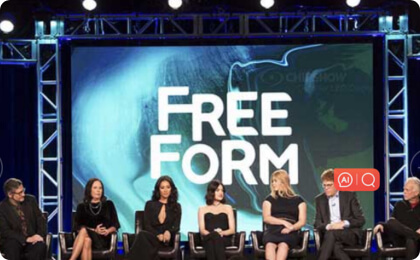

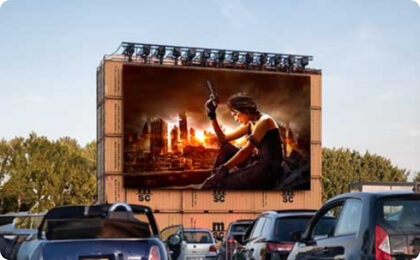

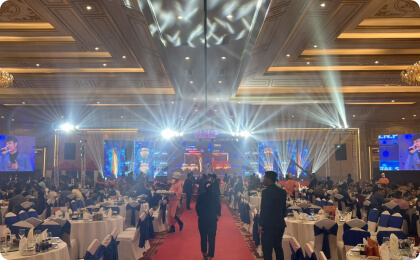

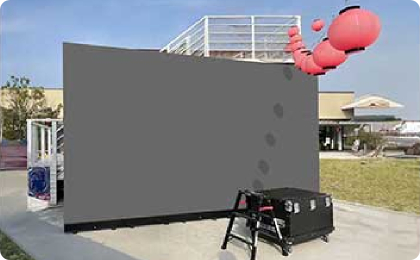

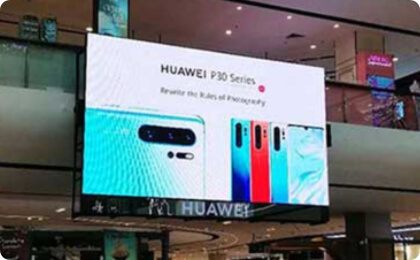

Application Scenarios

Product Features

Thin and Light Design

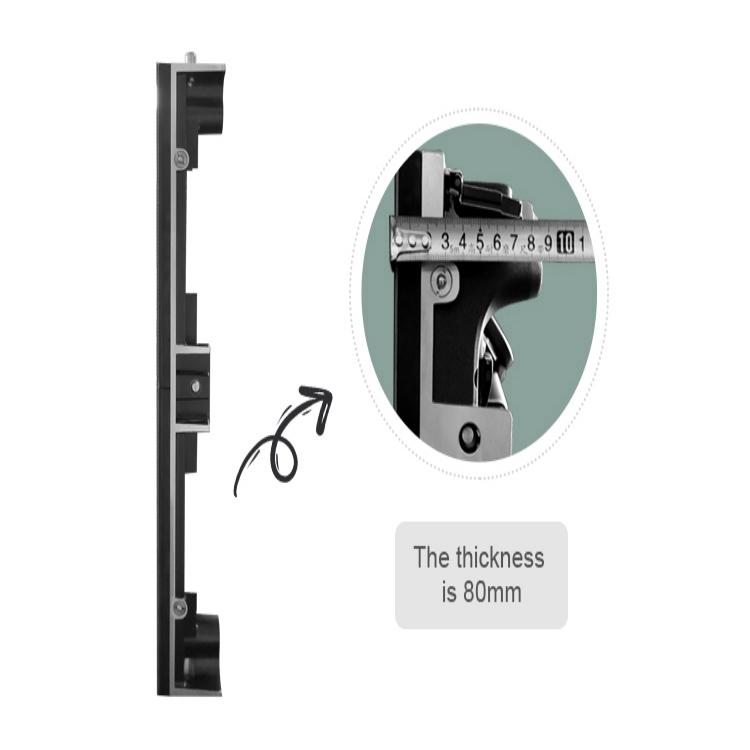

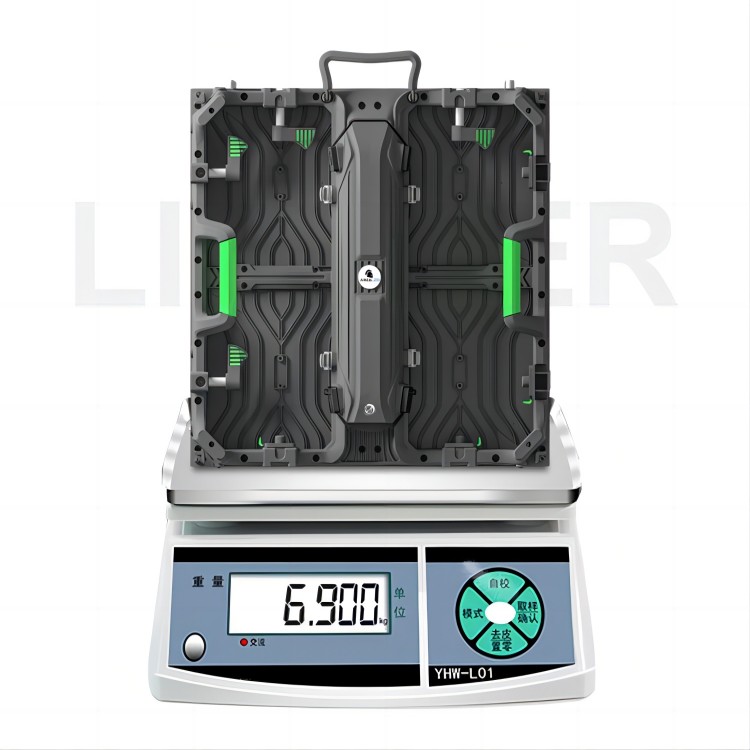

The overall weight of our product is only 6.9 kg, and the thickest part of the product is only 80mm

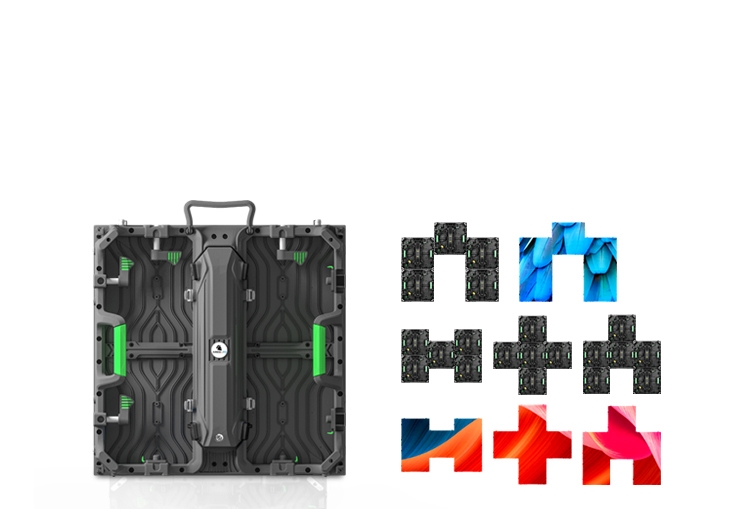

4 Fast Locks

Support creative shapescreen installation,You can mix and match according to your needs

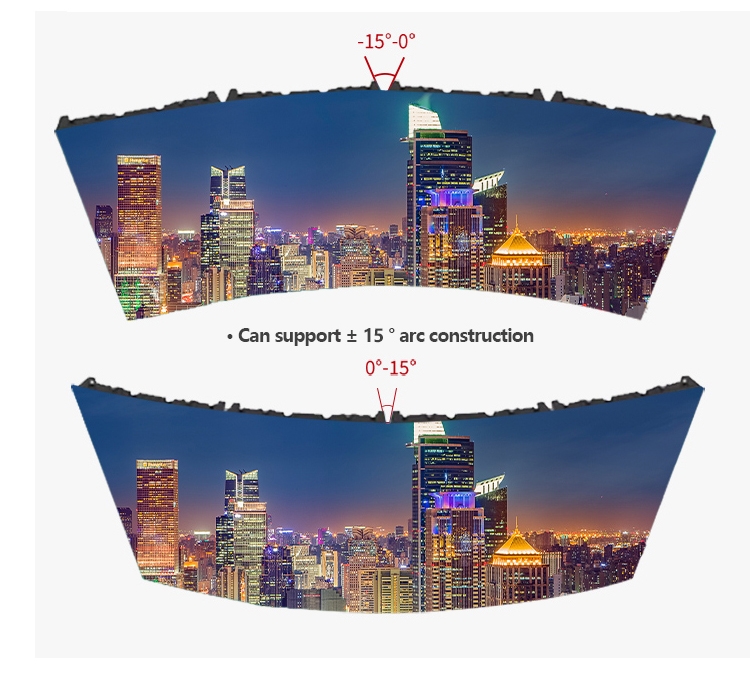

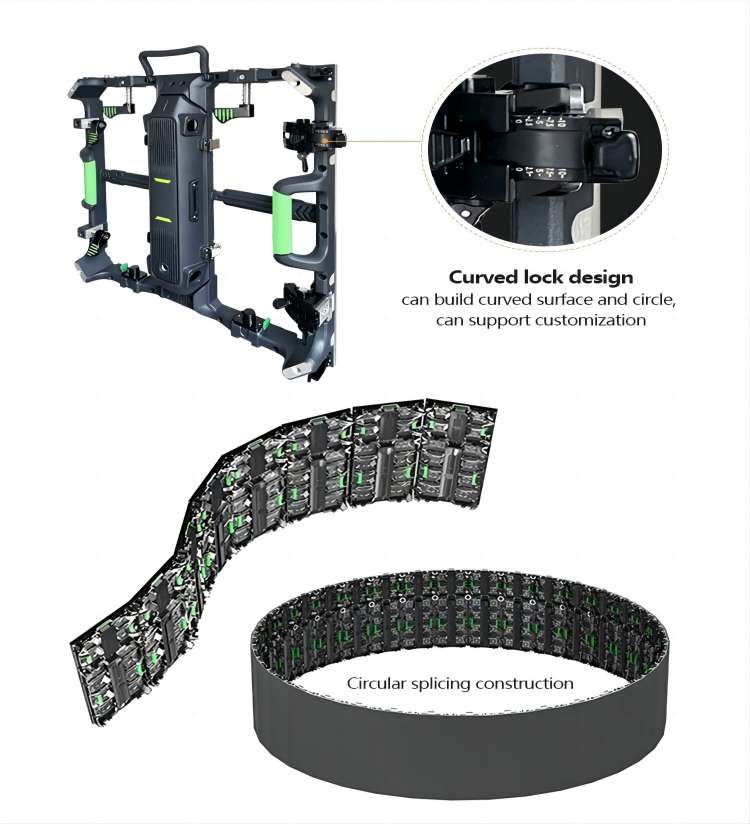

Curved lock design

Our products can also be customized to match right angle,For all your needs.Curved lock can build curved surface and circle,can support customization

Maximum bending angle ±15

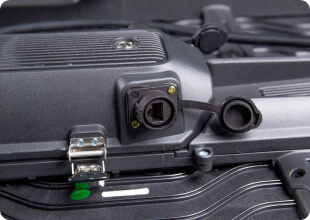

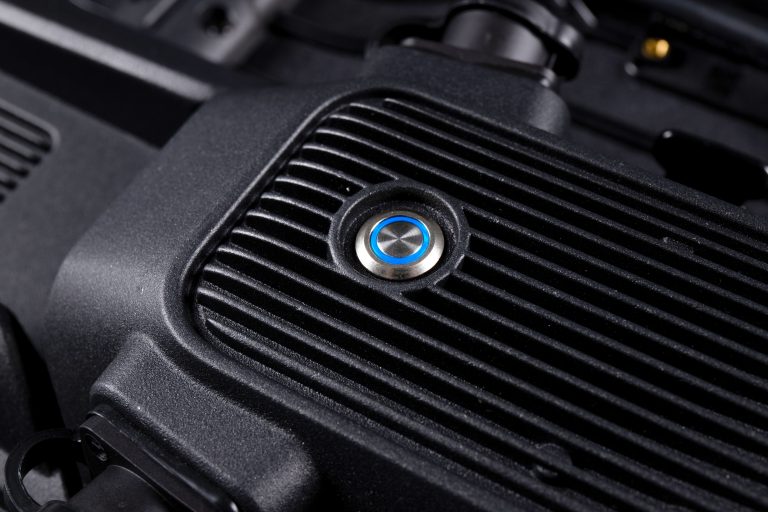

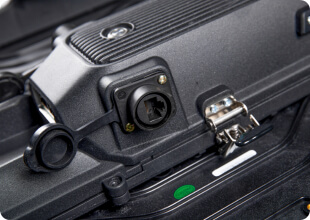

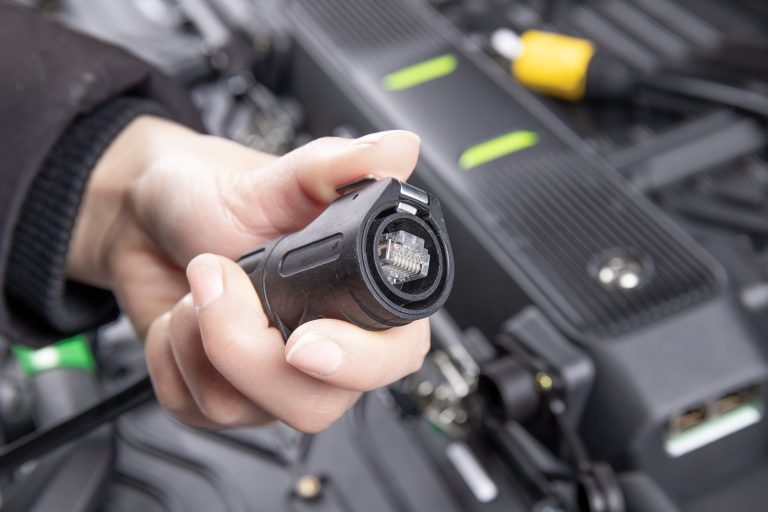

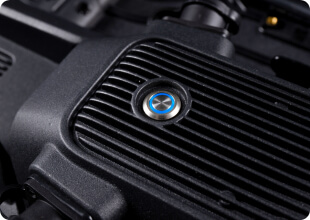

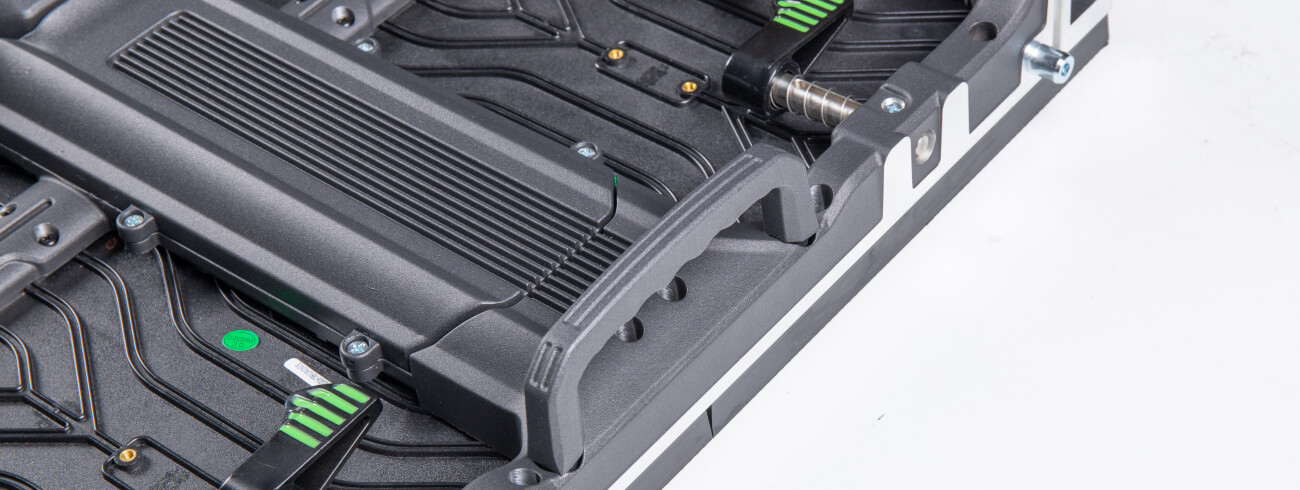

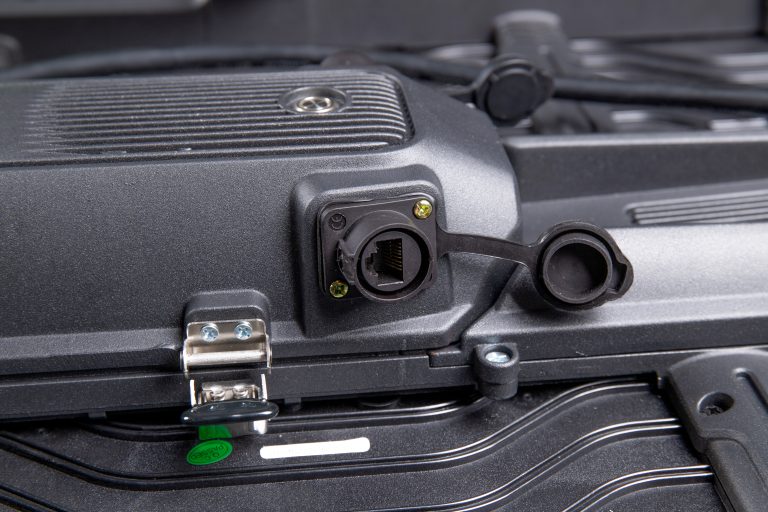

Working indicator light. Ability to find out if there is a problem with the product in a timely manner.Anti-bump corner guards protect the corners of the product from damage during use.Network cable jacks with inline links for more stable network links and improved waterproofing. Our-USB design interface is very stable and durable during use less prone to needle breakage
